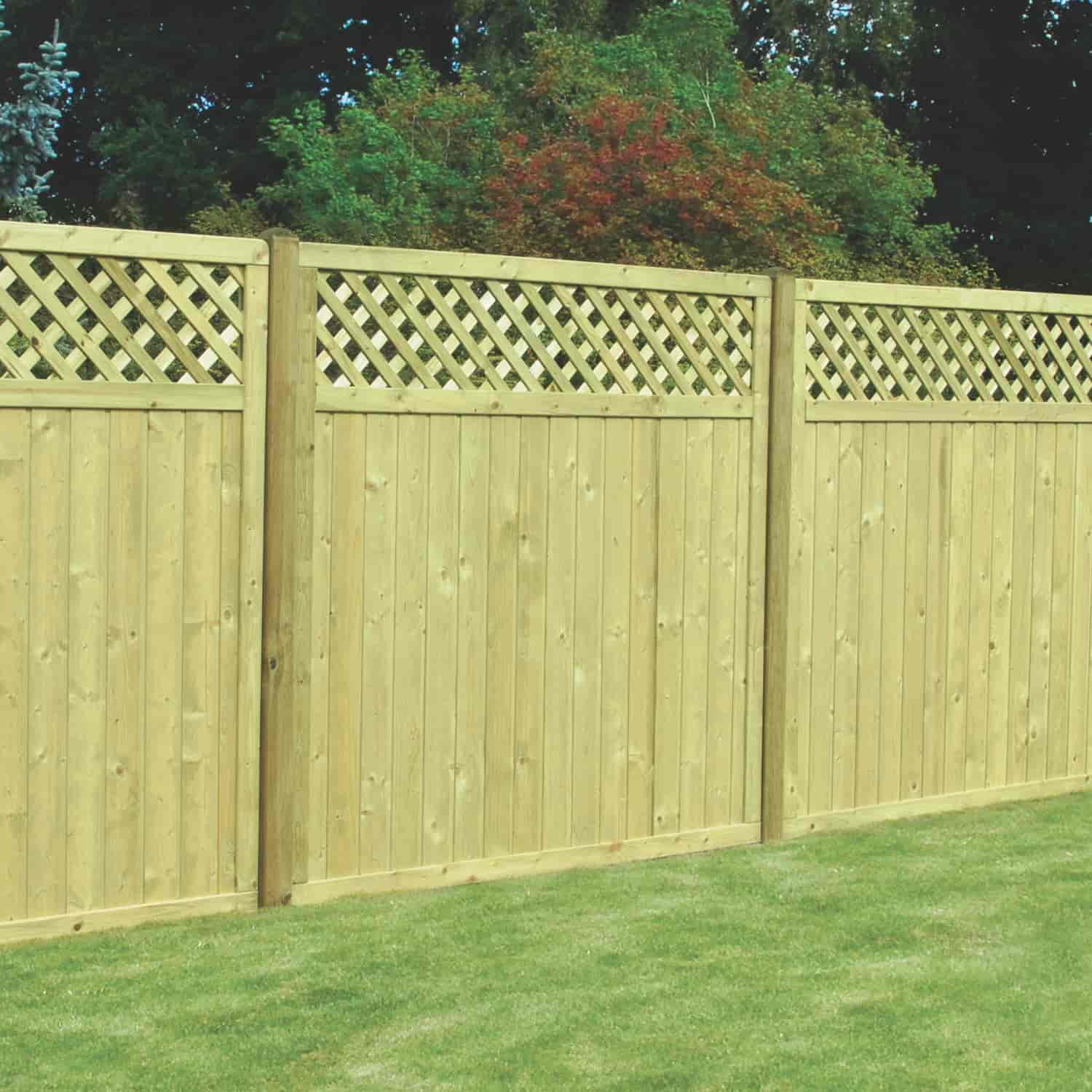

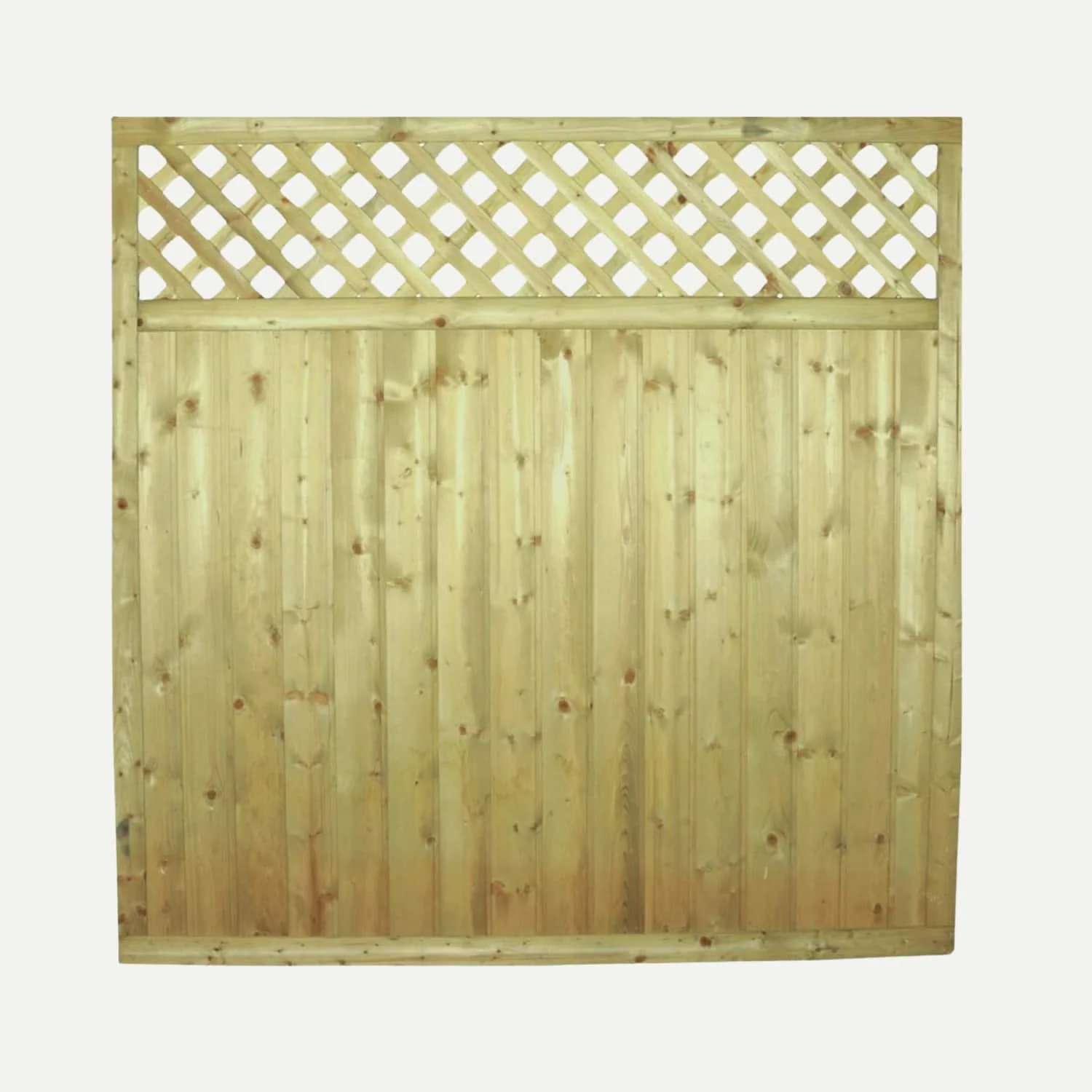

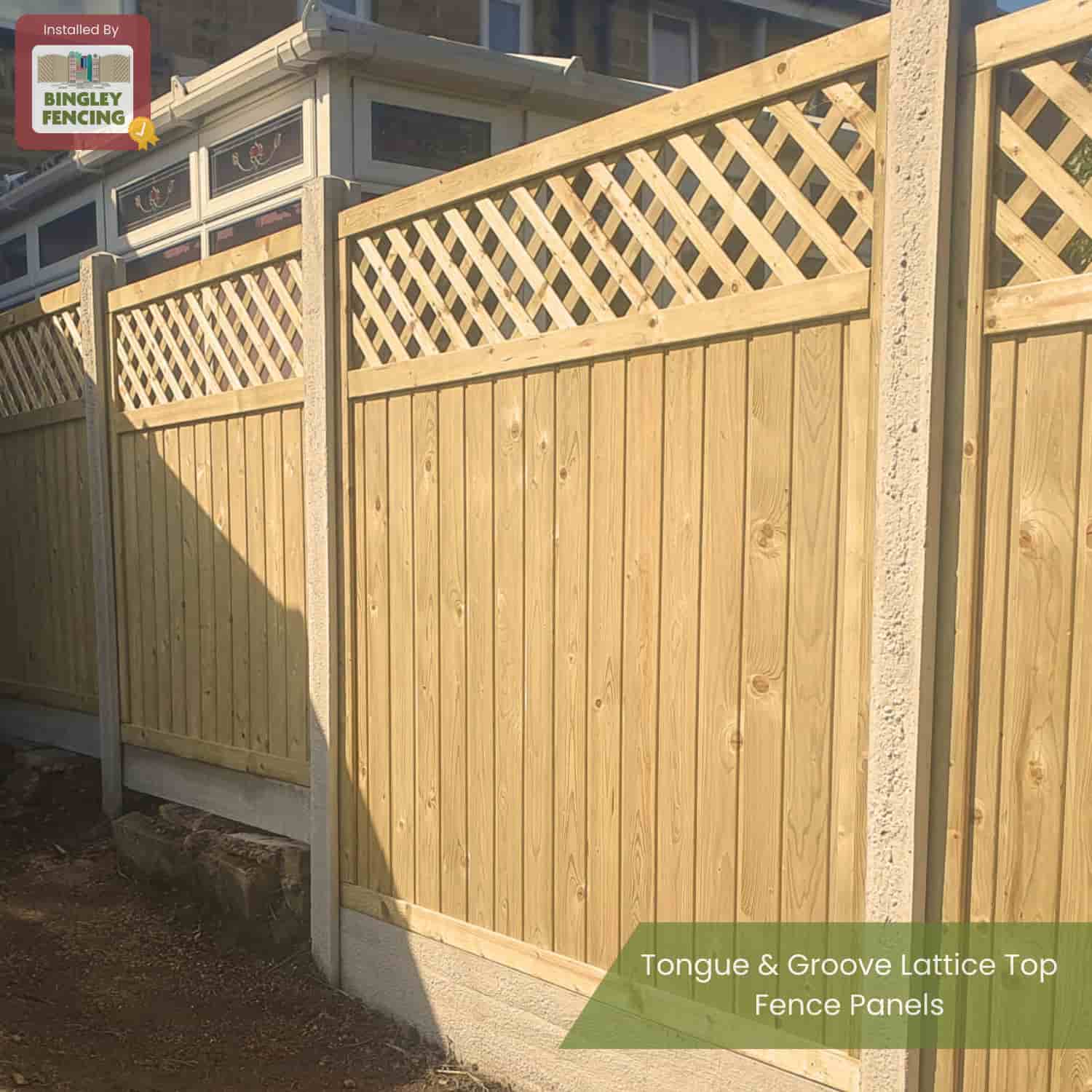

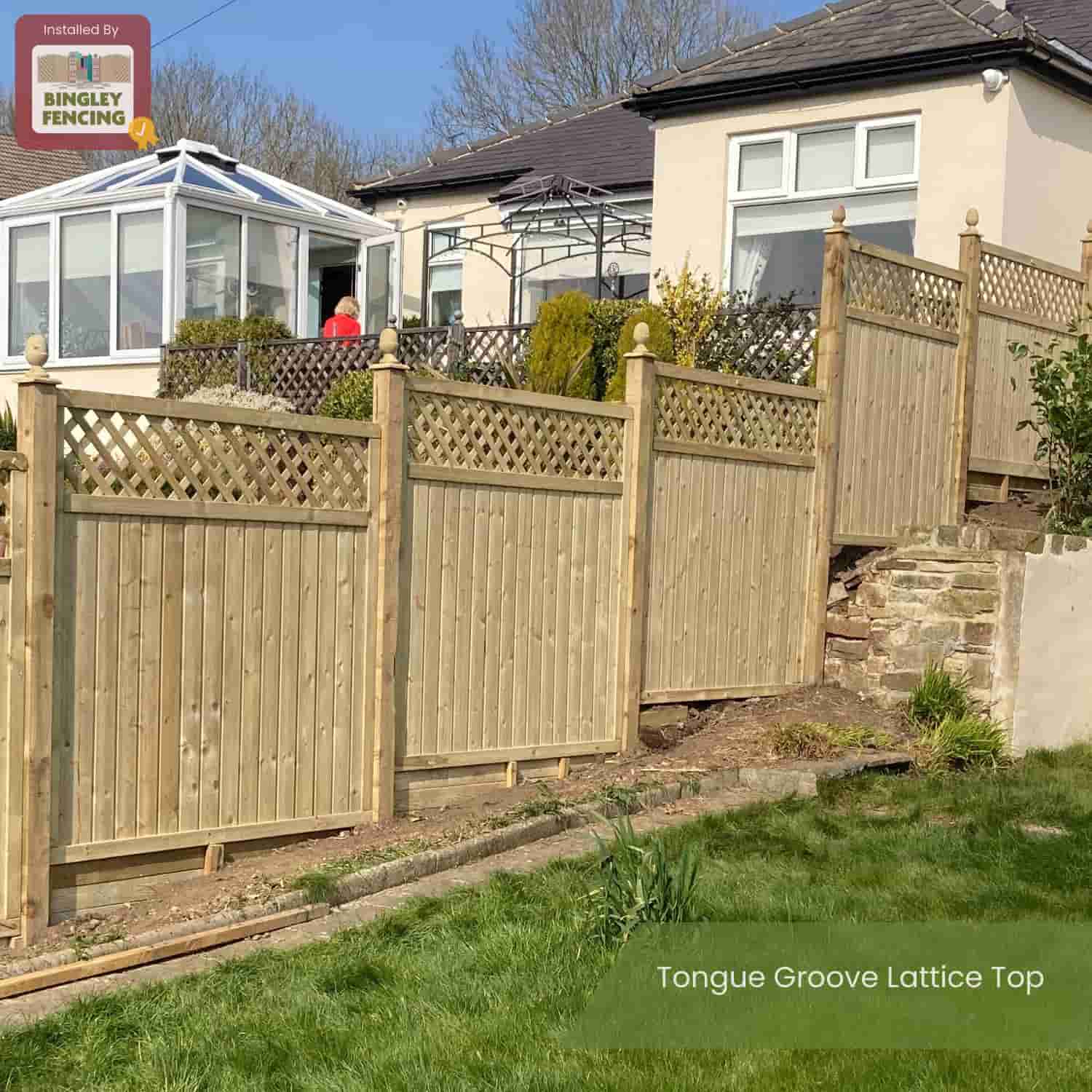

Tongue & Groove Lattice Top Fence Panels (TGLT)
This type of fence panel design benefits from the solid vertical tongue and grooved boards and the added extra of a lattice top section.
Complete privacy from the fence with the lattice top section allowing additional light through.
This panel is part of the KDM range of fence panels which are well known for their superior quality of materials and manufacture standards.
Fence Specification
| Feature | Specification |
|---|---|
| Panel Width | 1800mm (6ft) |
| Panel Height | 1200mm (4ft), 1500mm (5ft),1800mm (6ft) |
| Panel Customisation | Yes - we can modify these products in house. |
| Timber Treatment | Tanalised ( Pressure Treated) Requires Minimal Maintenance |
| Timber | Treated softwood, Class 3/4 |
| Panel Construction | Panels have mortise & tenon joints, and the boards are screwed on rather than nailed. Rebated framing all around. |
| Component Dimensions |
T&G Boards are 16mm x 95mm Framing is 45mm x 45mm Lattice is 8mm x 40mm with 50mm Inside Gap |
| Surface Finish |
Smooth planed with rounded edges. |
| Benefits |
Privacy, Noise Reduction |
| Important Info |
European panels sizes are based on 1800mm wide - which just slightly shorter of regular 6ft width panels (1830mm). If you are installing the panels into existing posts you may need a Panel Extension Kit to fit in the space of a regular fence panel. The images show the fence panel with premium fence capping. |
| Matching Products |
Lattice Top Gate, Smooth Planed Euro- Post |
- Fence posts (timber & concrete)
- Gravel boards
- Fixings & installation accessories
- Fence capping
